MetOcean Simulator User Interface

The user interface consists of the following main user interface components:

• Top bar
• Stepper
• Inputs panel
• Maps area
• Layer manager

The MIKE MS layout is presented in the figure below, and the UI components are further described in the following sub sections.

If you want to get started immediately on using MIKE MS, refer to the Step-by-step Guide.

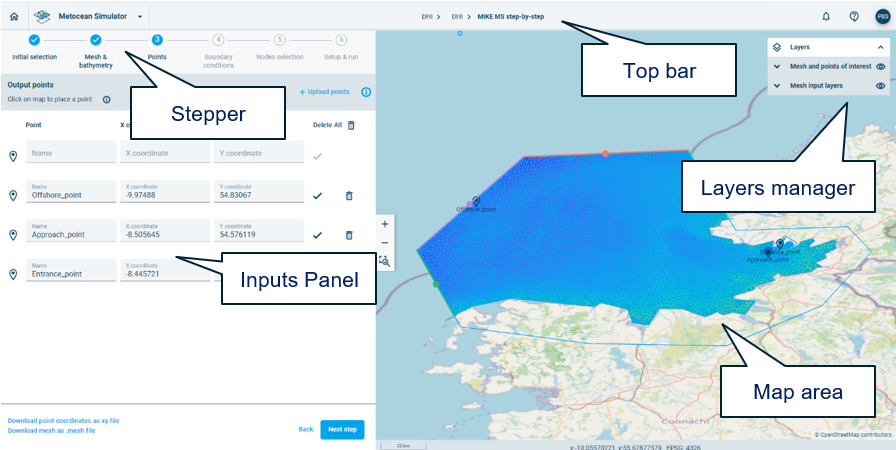

MIKE MS workspace with indication of main user interface components. The figure includes an example of a model mesh (blue polygon area) and output points.
